All You Need to Know Regarding Injection Moulding

Of all the manufacturing processes, injection molding is one of the most precise and efficient processes many companies opt for making their parts. It is an easy process that is equivalent to moulding but meant for creating heavy-duty elements.

What Exactly is injection molding?

injection molding is a manufacturing procedure where parts are made by injecting material in its liquid form into a certain type of mould to create a part of any object. It is mostly done using thermoplastic polymers and multiple other materials like metals and even glass.

The process is initiated by melting tiny pellets of the material, which will be injected inside the mould. The entire process is exactly like moulding but requires extra care because of the involvement of extremely hot materials. The liquid material is then injected inside the mould using a nozzle. The liquid is then let to cool down and finally taken out of the mould.

What are the types of injection molding?

There are several types of injection molding, including:

Conventional injection molding: This is the most common type of injection molding, where thermoplastic materials are melted in a barrel and then injected into a mold cavity to produce a solid part.

Multi-Shot injection molding: This process involves injecting multiple materials into a mold cavity in a single cycle. This technique can produce parts with multiple colors or materials, or parts with varying durometers.

Insert injection molding: In this process, metal or plastic inserts are placed into the mold cavity before the molten material is injected. The molten material surrounds the inserts and bonds to them as it cools, creating a single integrated part.

OverMolding: This process involves Molding one material over another, creating a part with a soft-touch surface or multiple colors. It is often used in the production of handles, grips, and other consumer products.

Micro injection molding: This is a specialized type of injection molding used to produce very small parts, such as microelectronic components or medical devices.

Liquid injection molding: In this process, liquid silicone rubber is injected into a mold cavity and allowed to cure, producing a flexible, high-performance part. It is often used in the production of medical devices and other applications requiring high precision and flexibility.

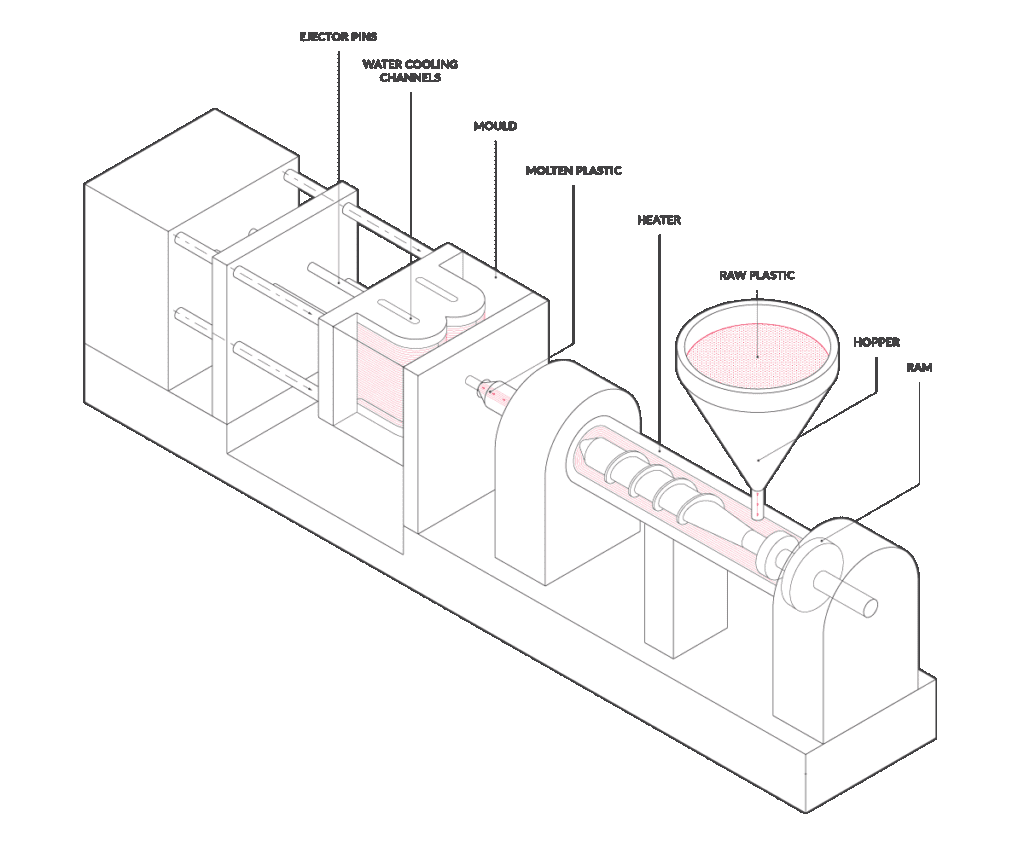

What are main parts of the injection mold?

  • Mold Base: The mold base is the foundation of the mold and provides support for all other components. It is typically made of steel and holds the various components of the mold in place.
  • hopper: The hopper is the container that holds the raw material, such as plastic pellets, that will be melted and injected into the mold.
  • Core and Cavity: The core and cavity are the two halves of the mold that create the shape of the final part. The core is the part of the mold that creates the internal features of the part, while the cavity creates the external features.
  • Barrel: The barrel is the cylindrical chamber that melts and mixes the material, using heat and pressure, and then injects it into the mold cavity. The barrel is typically heated by heating bands, which wrap around it and maintain a consistent temperature for melting and mixing the material.
  • Sprue: The sprue is the channel through which molten material is injected into the mold. It is typically located in the center of the mold and is connected to the runner system.
  • Runner System: The runner system is the network of channels that distribute the molten material from the sprue to the various parts of the mold. It includes the sprue, runners, and gates.
  • Ejector Pins: Ejector pins are used to push the finished part out of the mold after it has cooled and solidified. They are typically located on the side of the mold opposite the sprue.
  • Cooling System: The cooling system is used to control the temperature of the mold during the injection molding process. It includes water channels or other cooling media that are built into the mold to help dissipate heat.
  • Venting System: The venting system is used to release air and gases from the mold cavity during the injection molding process. It helps to prevent defects such as air pockets or voids from forming in the finished part.

injection molding: What is its Purpose?

Some of the most legitimate advantages of using injection molding consist of:

  • This is an entire machine automated procedure which means you will get no defects in your manufactured products and also high rates in production in a minimum amount of time. This is why it is highly preferred for the mass production of parts.
  • Extremely detailed and intricate parts can be effortlessly manufactured utilizing injection molding easily. All you will need is high-class mould designs, and your material will be produced effortlessly with precision. A very little touch up will be required post-production if you opt for injection molding.
  • It is a clean process where a very little amount of waste is produced. Whatever excess product is left from the moulding process can be easily reused. Other than that, injection molding also gives you the freedom to work and experiment with multiple types of material. You can mix different kinds of material to achieve the desired quality easily.
  • This process is an amazing option to do prototype testing. If you have any product which is getting manufactured for the first time, then injection molding is the best option as it is a cheaper alternative and gives more or else very precise results as well.
  • It reduces the labour force and saves your time as well. You don’t have to spend time finding suitable workers and recruiting them and also training them for doing the job since the entire The process will be managed by machines.

The disadvantages of injection molding are not many in number, but they do not stand in front of the advantages offered by it. People often refrain from investing in injection molding considering the expenses and the electricity costs, but to get the precision and to save time as well, it is undoubtedly one of the best investments any manufacturing company can make.

It is hassle-free and highly precise; the finishing touches required are a minimum which is why it is highly recommended for mass production purposes.
